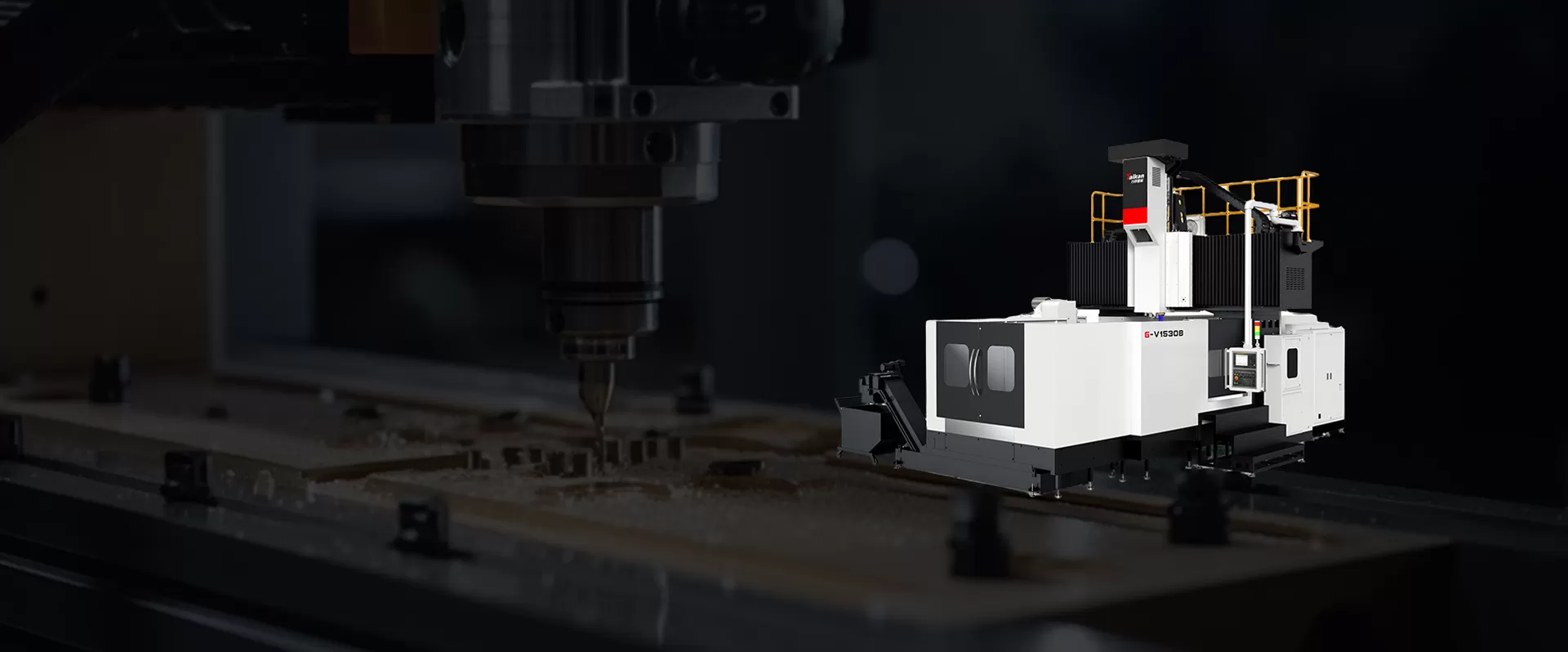

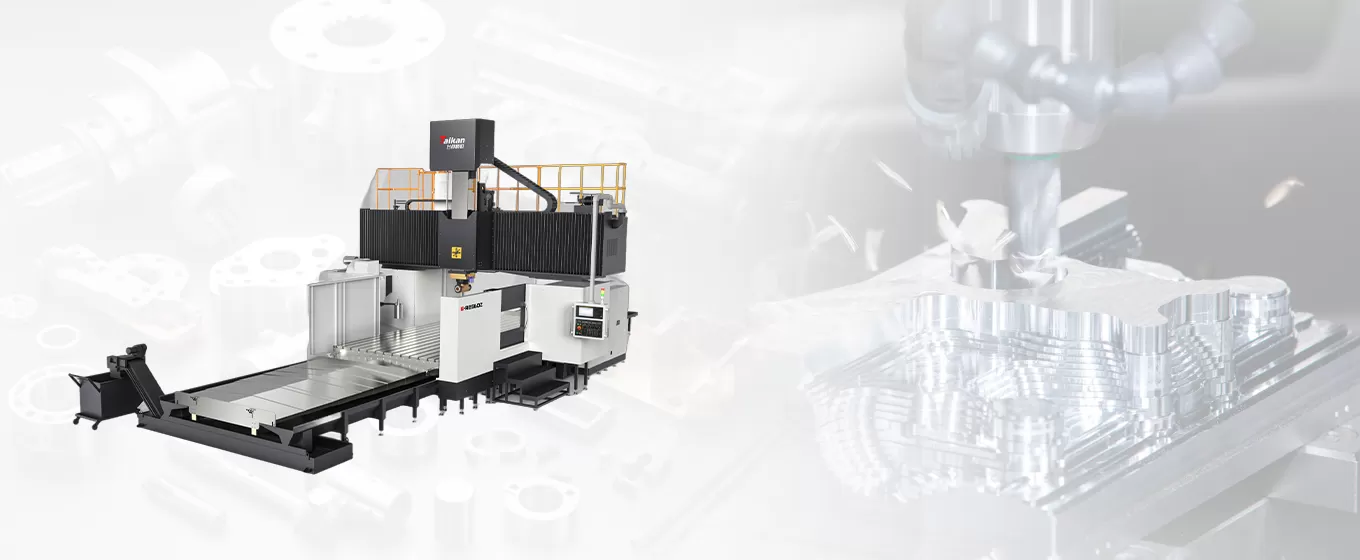

Panduan Linear paksi 3 siri G-V

X-axis perjalanan

Mm

2,100/2,600/3,150

3,150

1,800

21,00/2600/3200

Y-paksi perjalanan

Mm

1,525

1,800

1,200

1,525

Z-paksi perjalanan

Mm

700

700

800

800

Lebar pintu yang berkesan

Mm

1,560

1,800

1,1,60

1,560

Lebar meja kerja

Mm

1,250

1,800

1,000

1,250

Panjang meja kerja

Mm

2,000/2,500/3,000

3,000

1,800

2,000/2,500/3,000

Spesifikasi pemegang alat

/

BBT40/BT40

BBT40/BT40

BT50

BT50

Maks. Kelajuan spindle

R/min

12,000 (gandingan langsung)

12,000 (gandingan langsung)

6,000

6,000

Kuasa motor Spindle

KW

11/15

11/15

15/18.5

15/18.5

Tork keluaran Spindle

N.m

52/95

52/95

191/315

191/315

X-axis perjalanan

Mm

2,200/3,200/4,200

3,200/4,200/5,200

4,200/5,200/6,200

5,200/6,200/8,400

Y-paksi perjalanan

Mm

2,200

2,700

3,200

3,700

Z-paksi perjalanan

Mm

1,000

1,000

1,000

1,000

Lebar pintu yang berkesan

Mm

1,950

2,450

2,950

3,450

Lebar meja kerja

Mm

1,500

2,000

2,500

3,000

Panjang meja kerja

Mm

2,000/3,000/4,000

3,000/4,000/5,000

4,000/5,000/6,000

5,000/6,000/8,000

Spesifikasi pemegang alat

/

BT50

BT50

BT50

BT50

Maks. Kelajuan spindle

R/min

6,000

6,000

6,000

6,000

Kuasa motor Spindle

KW

15/18.5

22/35

22/35

22/35

Tork keluaran Spindle

N.m

807/1,331

790/1,258

790/1,258

790/1,258
